CARBON STEEL WELDING WIRE G4Si1 SG3
Company vision: Satisfy customers with service, create success with quality.
1. Main Features
XCJ56 (SG3 G4si1) welding wire is a high-performance material designed for CO2 and CO2+Ar mixed gas shielded welding. With higher manganese and silicon content than SG2, SG3 offers better welding performance and mechanical strength, ideal for high-load and demanding conditions. Known for its stable arc and low spatter, it's a versatile and efficient choice for various demanding welding applications.
EN ISO standard: ISO 14341-A-G 46 5 C1/M21 4Si1
Advantages: Our products are well-known for the excellent welding technological properties, stable arc, less spatter, a higher deposition efficiency and being suitable for all positions.
Product superiority: As the first Chinese factory who receives TUV approval for SG3, our company enjoys great reputation for high quality. The wire is sold worldwide and recognized by many world top 500 enterprises.
Certificates: CE, ABS, LR, DB, TUV, ISO, UKCA
2. Specifications
Diameter: 0.6mm – 1.6mm; 1.2mm - 3.5mm
Net weight: 1kg, 5kg, 15kg, 20kg; 125kg, 150kg, 250kg, 300kg

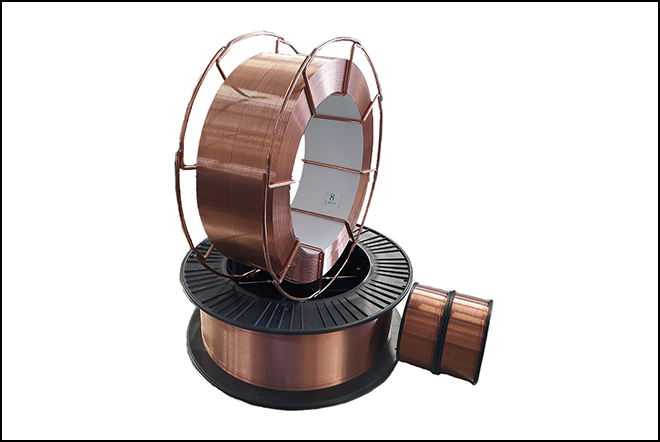

Available spool options: D100, D200, D270, D300, K300
Other specifications and packaging types can be customized
3. Technical data
Chemical composition of wire
Accord with EN ISO 14341-A
%C | %Mn | %Si | %S | %P | %Cu |
0.072 | 1.73 | 0.91 | 0.012 | 0.012 | 0.16 |
Mechanical prosperities of deposited metal
Accord with EN ISO 14341-A
Yield Strength | Tensile Strength | Elongation A | Impact Value | Radiographic Inspection |
488 | 594 | 28.5 | 80 | I |

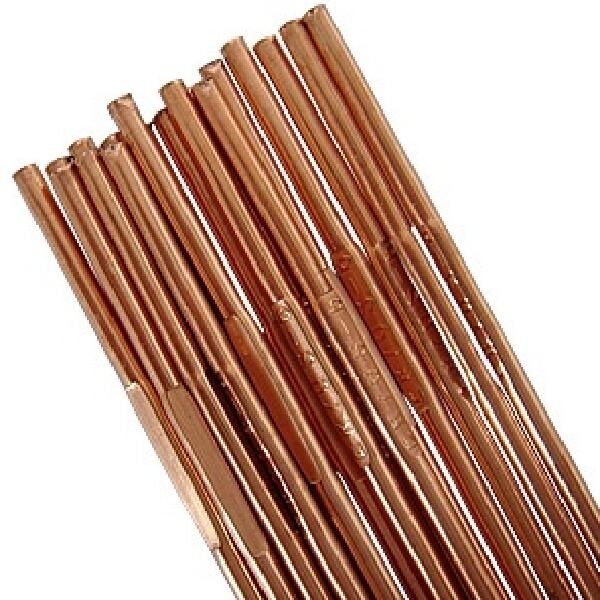

*Note: Argon arc TIG rod and submerged arc welding wire is available
5. List of Changjiang welding wires
Frequent Ask Questions
Q1: What is the delivery time? Do you have products in stock?
A: The number of stocks depends on the demands. After receiving the deposit, we will get your goods ready as soon as possible. The monthly output of the factory is more than 8000 tons. The delivery time for urgent order is negotiable.
Q2: Could I visit the factory?
A: Yes, please contact us in advance to make an appointment!
Q3: Could I get any sample?
A: Yes, we provide sample free of charge (exclude international postage). We are confident for the product of our quality!
Q4: What is your minimum quantity of order?
A: Carbon steel welding electrode: 10 ton for formal order.
Carbon steel solid welding wire: 10 ton for formal order
Other types from 2ton.
The minimum quantity of order for trail order is negotiable.
Q5: How can we trust your quality?
A: Our factory has about 70 years of history, enjoying great reputation in the world market.
Our products have been certified by various classification societies and help us build long-term cooperation relationship with many top 500 companies.
Q6: Could I used our own package design?
A: Yes, free OEM is available for order over 10tons. The minimum quantity of order is 500 cartons, regardless of weight.
Q7: Do you have other types of welding consumables?
A: Yes, please contact us anytime for details.
